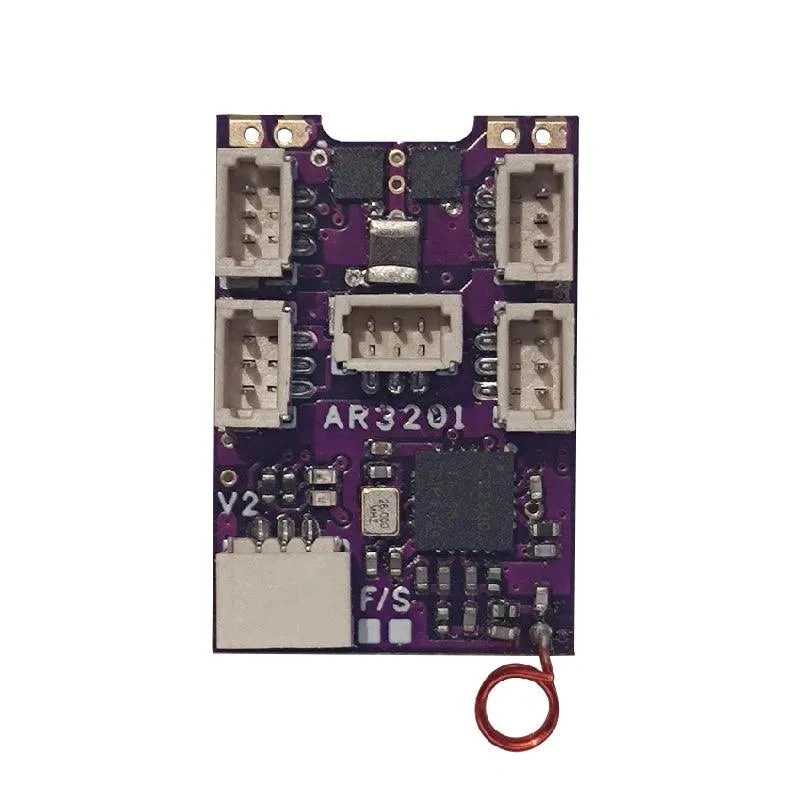

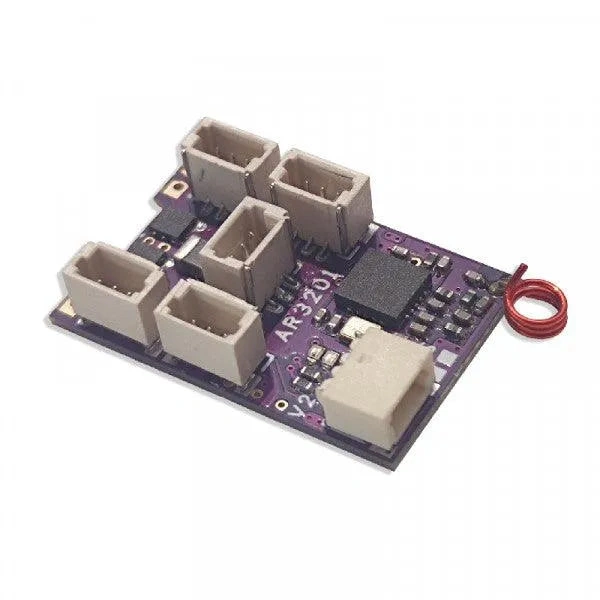

CROSSOVER-RX AR3201-S V2.0 (FUTABA-SFHSS) Built-in 2 brushed ESCs/6CH MicroRX
AR3201G-S is a kind of highly integrated receiver(built-in two brush 5A ESCs, one receiver, SR3X 3-axis(option), DCDC-5A/1A boosting power). It is very helpful for DIY or rebuilding model airplanes weight between 25-100g.
Features
1)Modulation:Compatible FUTABA-SFHSS
2)Small size: 22.0*16.0*6.2mm(not including antenna)
3)Super light: 1.5g(including antenna)
4)Working voltage:3.0~5.0V
5)DCDC-5V/1A boosting power
6)With built-in 2 brushed ESCs (5A/1S , Lock starting function)
7)Binding automatically
8)Support online updating
9)Support GUI setting function
10)Supports differential speed mode
Connection Diagram
Start-Lock Function
Start-Lock Function is the onboard brush ESC function of preventing brush motor from starting by mistake. It can protect the brush motor from starting even throttle stick not at the lowest position when the receiver is powered.
As soon as the receiver gets the signal and the throttle stick on your transmitter is at the lowest position for 2 seconds the first time, Start-Lock will be released then, the brush motor will run when the throttle stick is pushed.
Auto binding
As it is difficult to reach the binding button when the receiver has been installed inside the plane, we developed self-binding function, it works like this: The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual.
M.BUS Interface
M.BUS interface is a multi-function interface:
1) FW upgrade/Function setting interface;
2) Output channel signal;
3) Output SBUS signal;
4) Connect other sensors (under development);
Note: It is forbidden to connect the battery to the receiver when the PC is connected to the M.BUS interface.
How to connect RX to GUI software(Download link： update.crossover-rx.com/mxo.zip)
The user needs a USB programmer (USB MX-PG02, when used on AR3201-X V2.0, the switch on the programmer is set to the I position) before using the GUI software to configure the receiver function or upgrade the firmware. Connect one end of the USB programmer to the M.BUS port of the receiver, and the other end to the PC. After opening the GUI software, select the correct port, click 'Connect', and then the various configurable function modules on the receiver will be loaded and displayed. The current setting information of the machine.
How to connect RX to GUI software
The user needs a USB programmer (USB MX-PG02, when using the MXL-RX62E-XG, the switch on the programmer is set to the II position) before using the GUI software to configure the receiver function or upgrade the firmware, and set the USB programmer’s ribbon cable Connect one end to the M-BUS interface of the receiver, and the other end to the PC. After opening the GUI software, select the correct port, click 'Connect', and then each configurable function module on the receiver will load and display the current setting information of the receiver.
AR3201 series receivers have the following 12 versions
Package Included:
1* AR3201-S receiver
