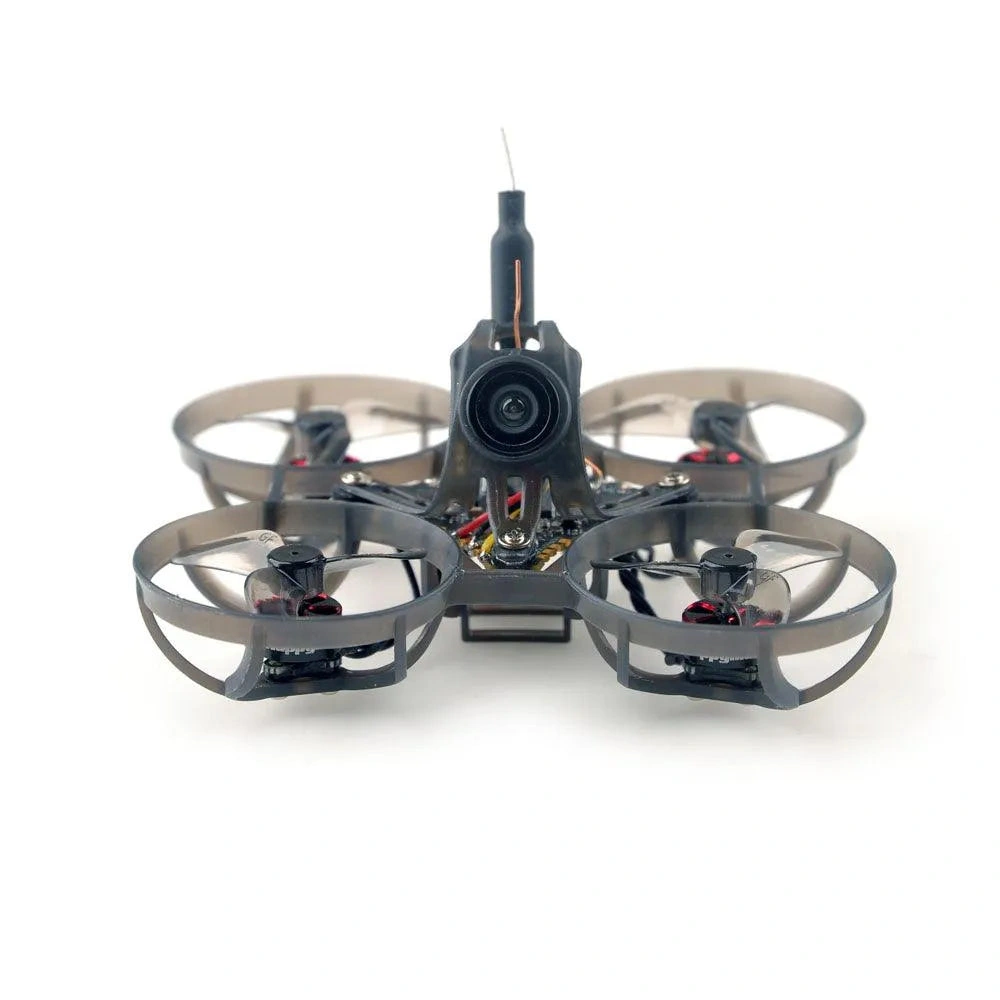

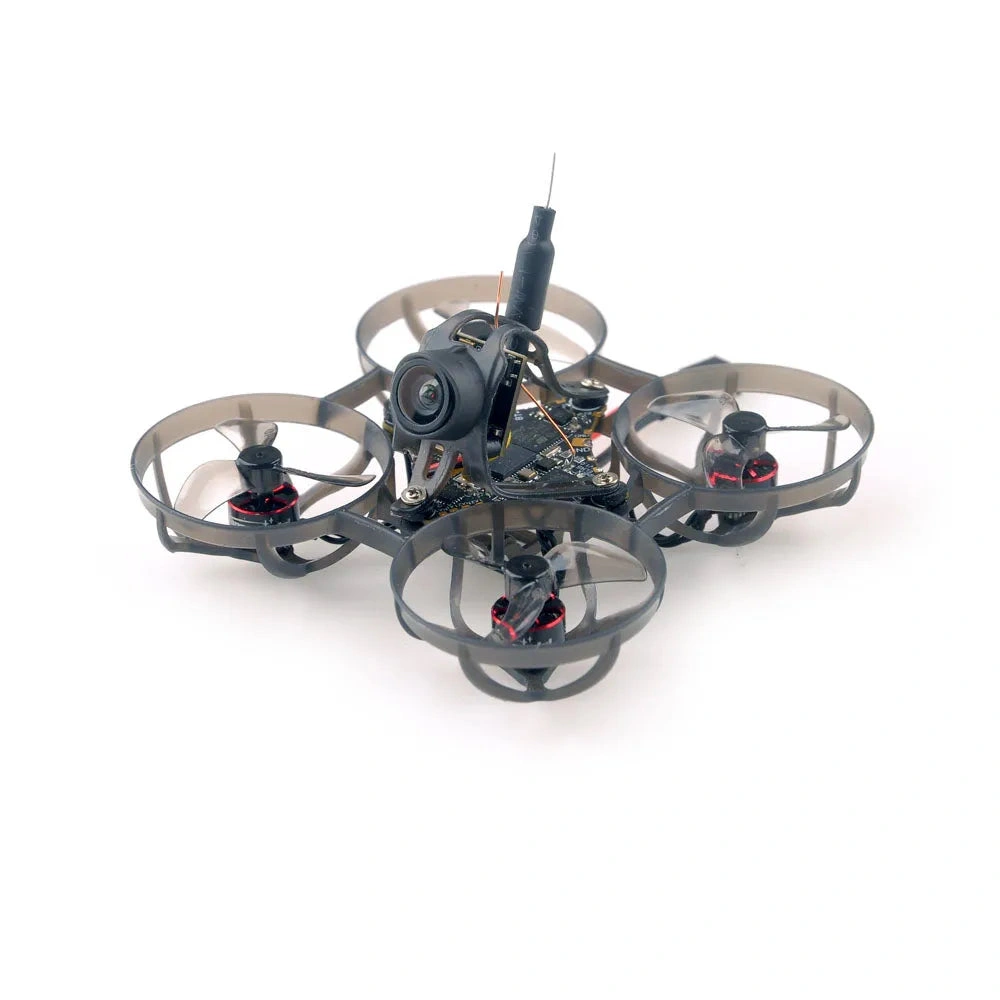

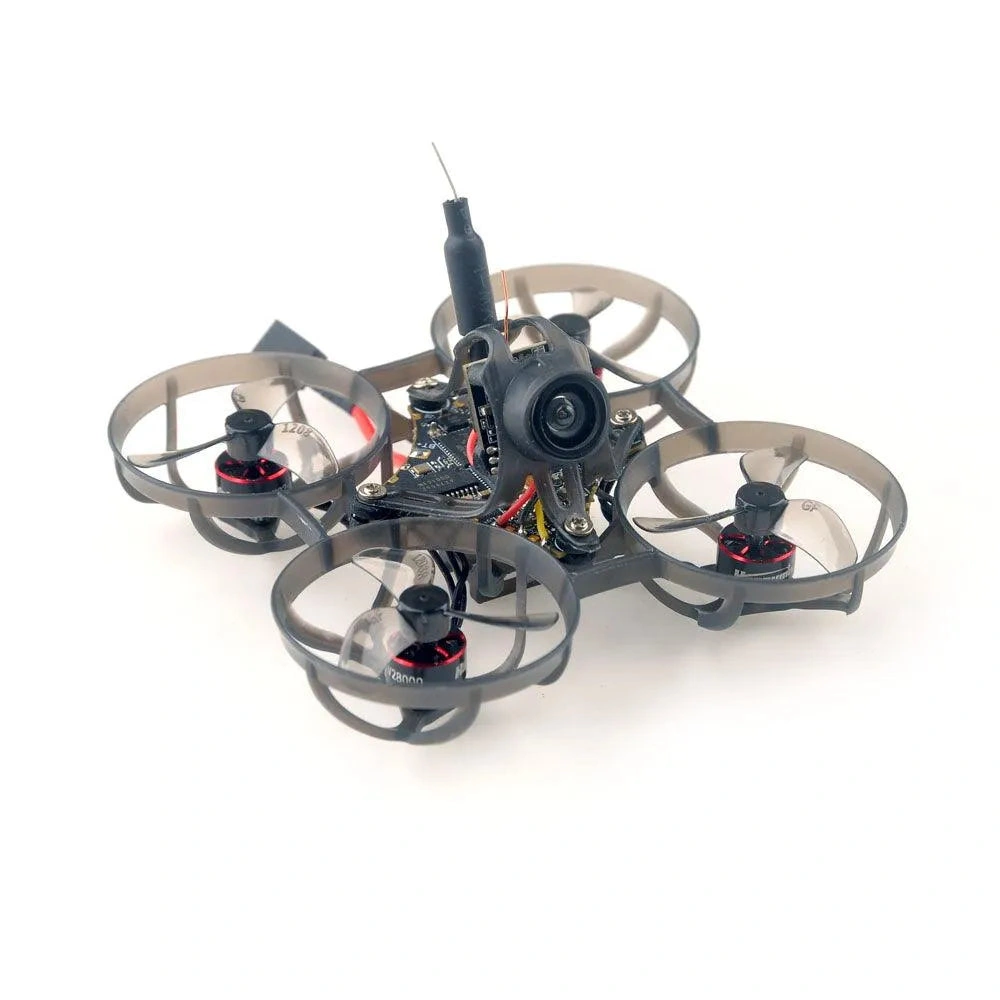

Mobula6 2024 1S 65mm Ultra Light Micro FPV Whoop BNF 2.4GHz ExpressLRS Receiver 5.8G Openvtx

Features:
AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx
Super light 1S 65mm Brushless whoop only 17.7g
Equipment with the lightest brushless motors-SE0702 only 1.46gram
FX17-B 1/3 CMOS 800TVL Camera awesome footage
Smooth and powerful
Compatible for 1S Lipo/LIHV

Specifications:
Brand Name: Happymodel
Item Name: Mobula6 2024 1S 65mm ultra light micro FPV Whoop
Wheelbase: 65mm
Size: 81mm*81mm*37mm

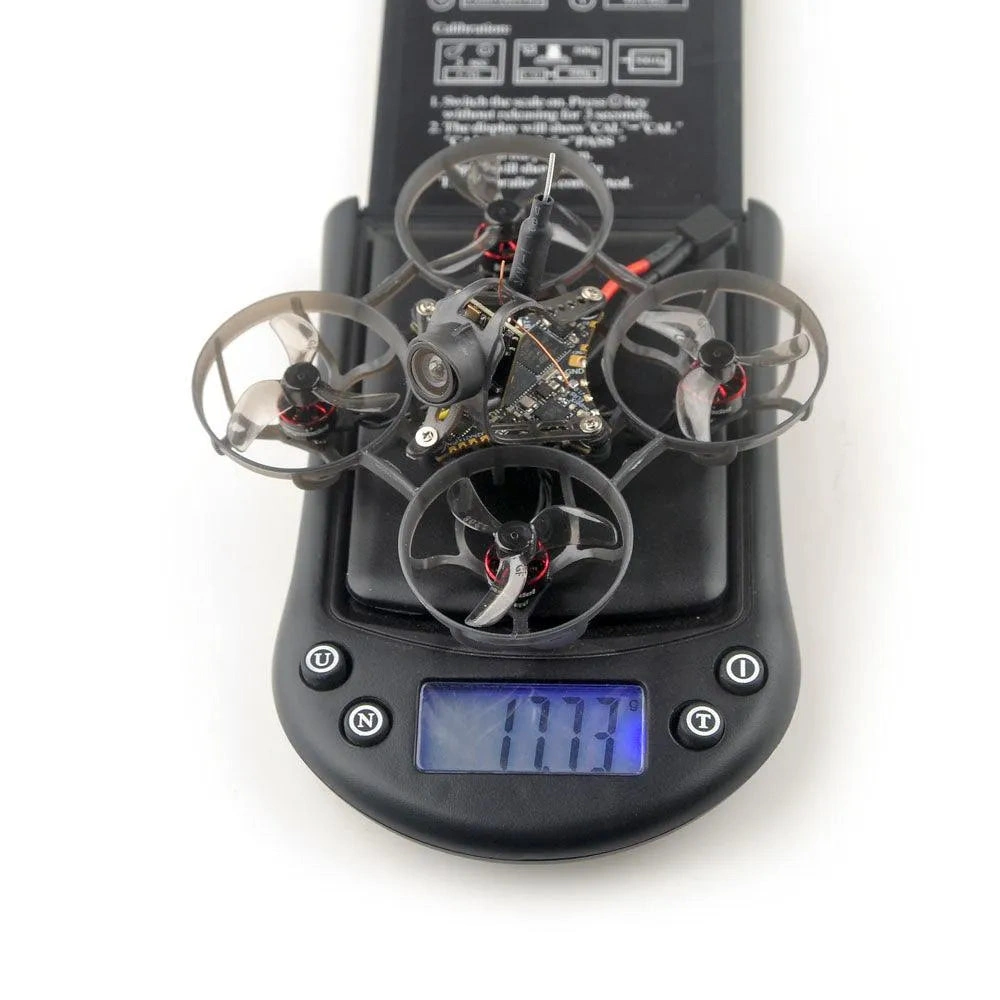

Weight: 17.7g

Motor：
Mode: SE0702 KV28000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.46g
No.of Cells(Lipo):1S only

Propellers：
Materials: PC
Inch: 31mm
Pitch: 0.8 in
Weight: 0.21g
Mount hole diameter: 1mm

Flight controller：
SuperX ELRS AIO 5-IN-1 Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor:BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor, voltage meter scale 110
Built-in current meter sensor, current meter scale 1175

Onboard 4in1 ESC：
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay v0.19.2
Default protocol: DSHOT300
Recommend ESC Startup power value to min1100/max1200

Onboard Serial ExpressLRS receiver：
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V3.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire antenna
Telemetry output Power: <12dBm
Receiver protocol: Serial_based CRSF
Compatible with ExpressLRS V3.x.x TX Module
Could flash single ELRS receiver firmware by Wifi
ExpressLRS firmware target: Generic ESP32 2.4Ghz RX and VTX

Onboard 5.8g VTX:
Firmware version: OPENVTX
MSP VTX
PIT Mode support
Channels:40ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: U.FL

FX17-B Camera:
Model:FX17-B
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
FOV 150°
Signal System: NTSC
Net Weight: 1.5g
Dimensions: L14mm*W14mm*H13mm

Package Included:
1x Mobula6 2024 1S 65mm whoop Drone Frame +Canopy
1x SuperX ELRS AIO 5-IN-1 Flight controller
4x SE0702 KV28000 brushless motor
1x Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)
1x FX17-B 1/3 CMOS 800TVL camera NTSC 4:3
1x Onboard 5.8G 25mw~400mw VTX
1x Spare canopy
1x Propeller disassemble tool
1x Screw driver
