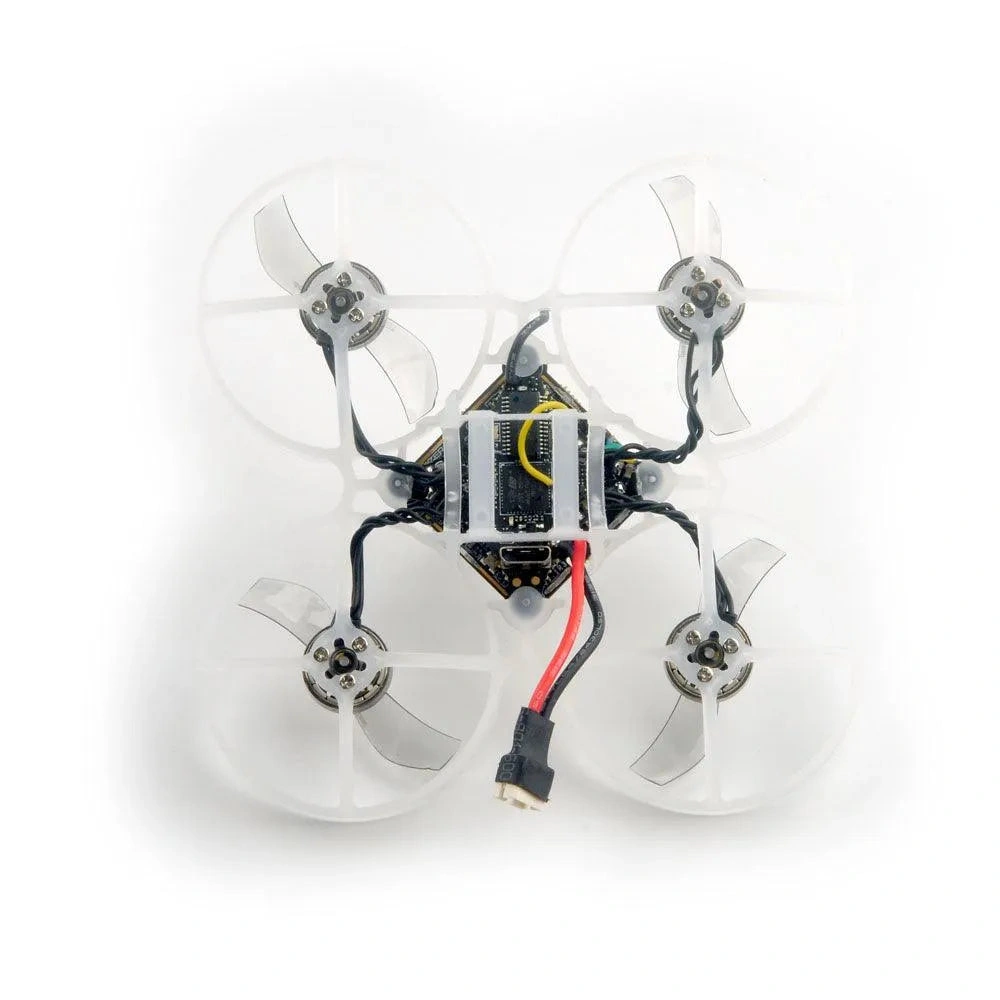

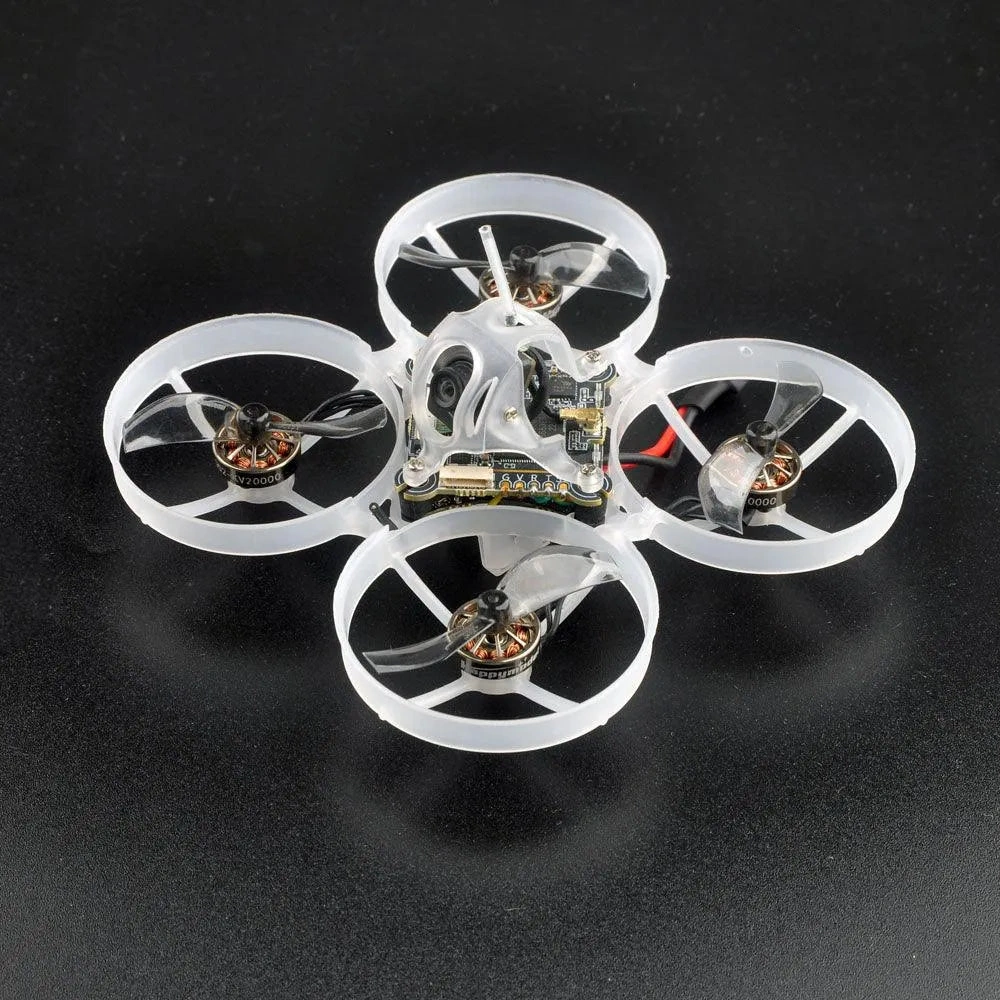

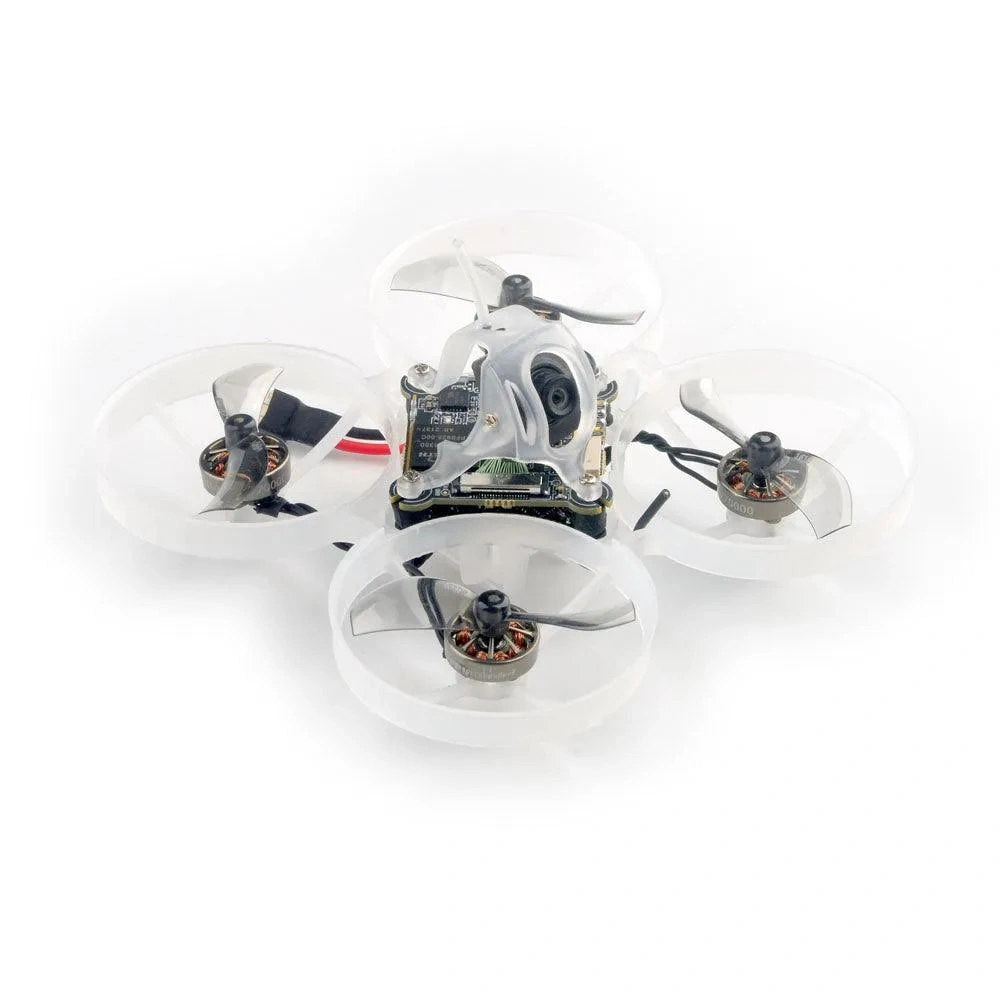

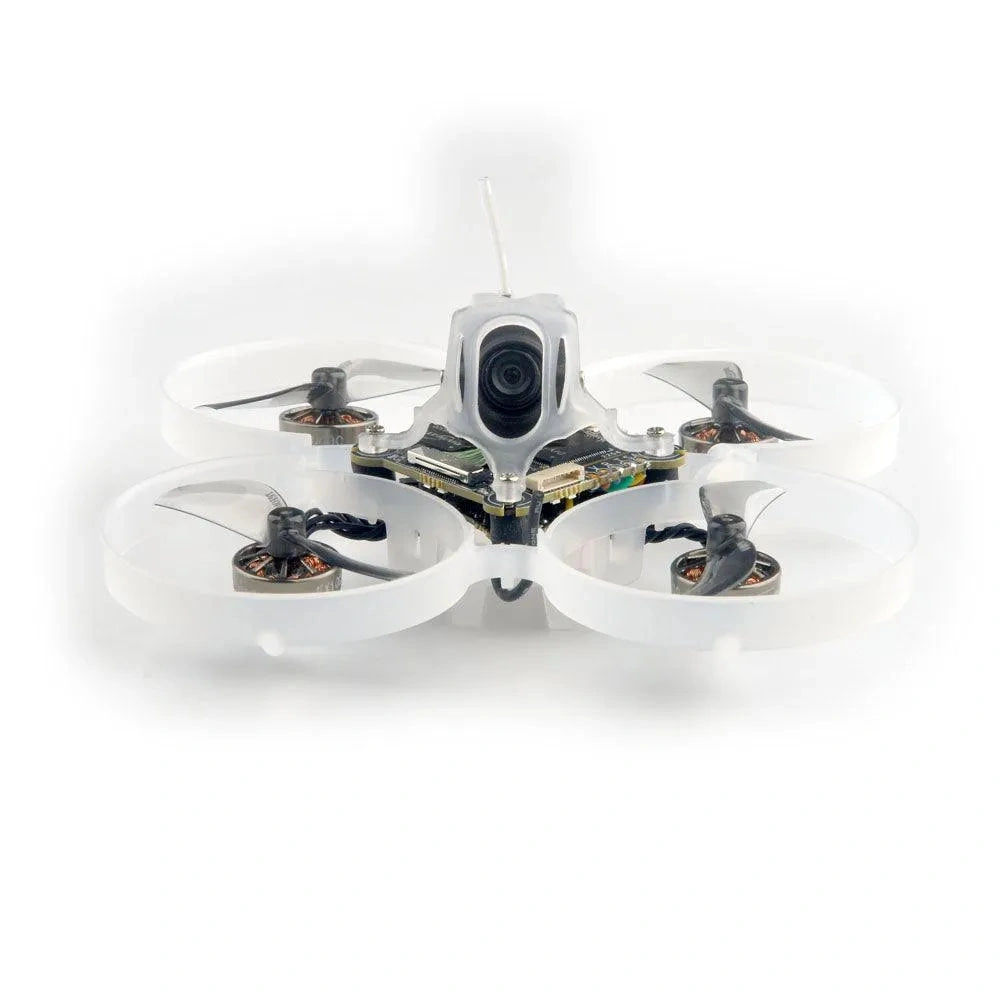

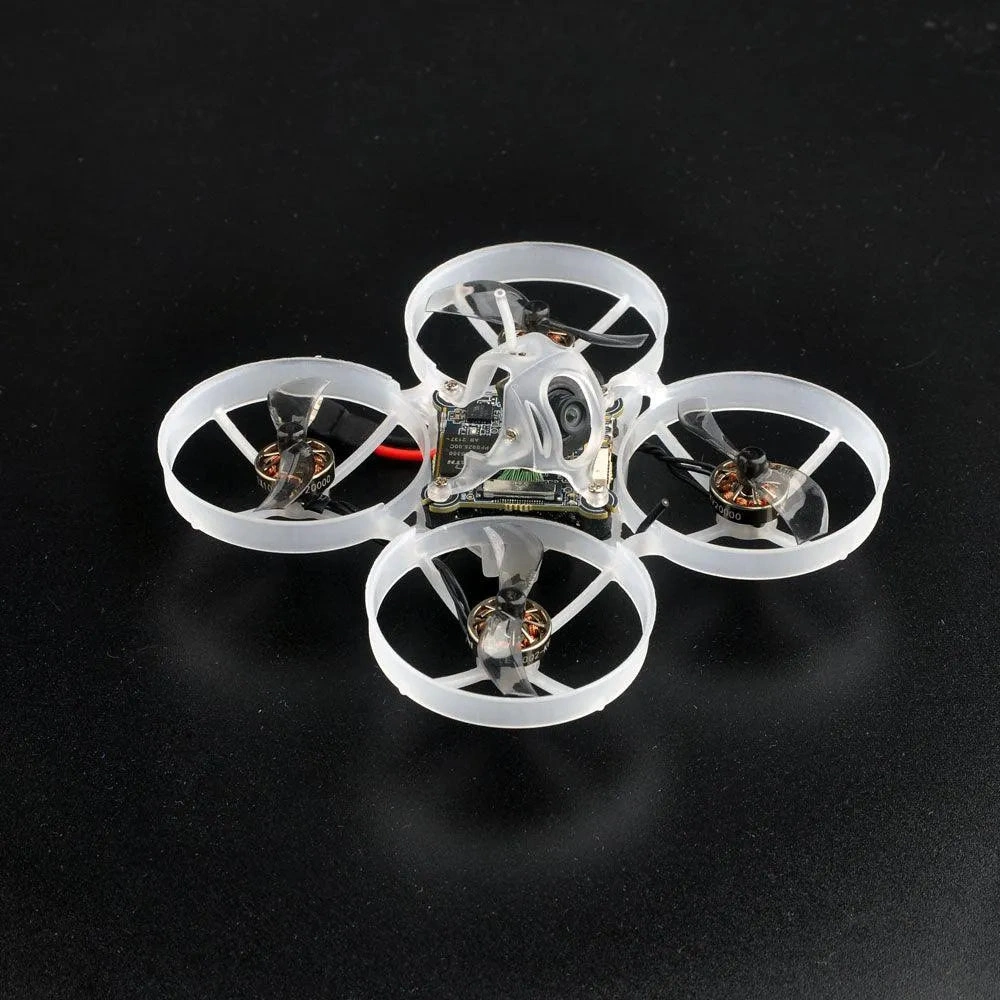

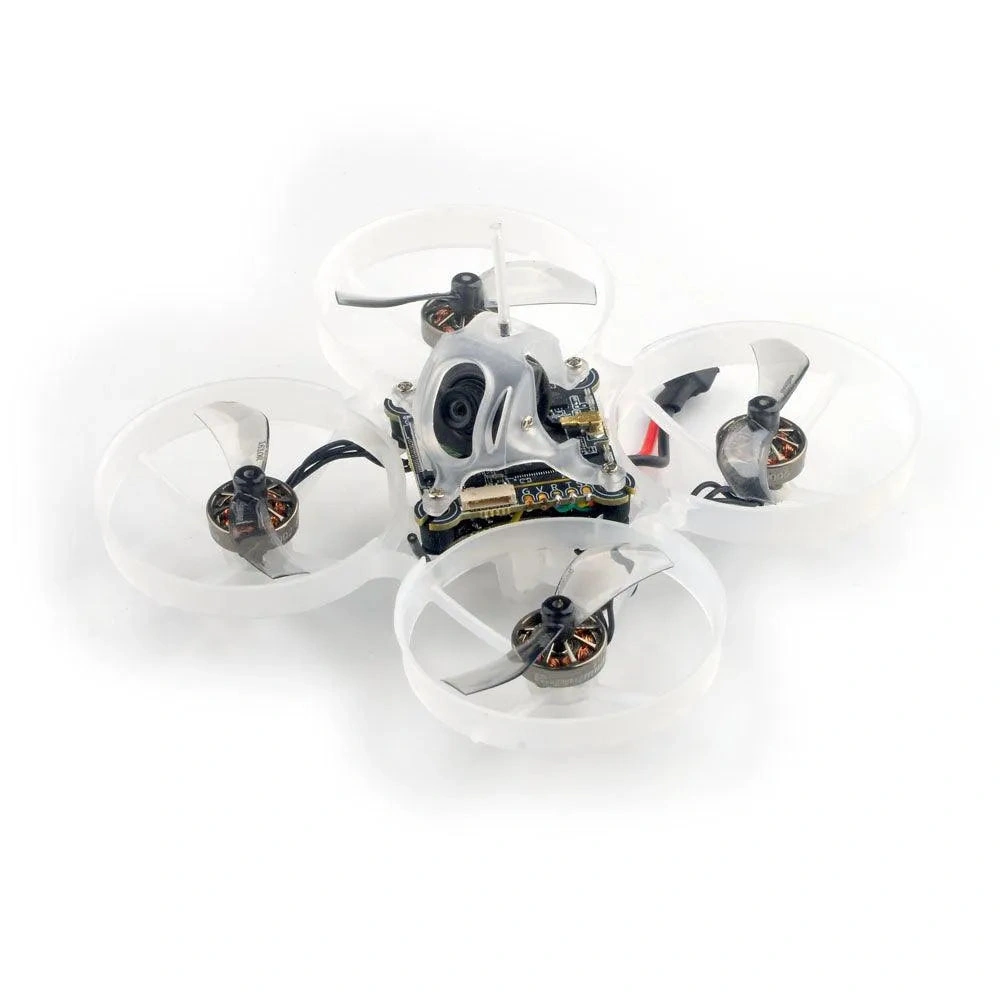

Moblite7 HDZERO: Tiny Terror with HDZERO Nano Lite Camera Ready to Rip!
Alright, buckle up buttercup, 'cause this ain't your grandma's whatever-it-is. We're talkin' pure, unadulterated awesome. This thing here? It's not just an item, it's a vibe. A statement. A whole damn mood. Think less "product", more "experience". Imagine you, the wind in your hair, this in your hand, ready to conquer whatever the day throws your way. Feeling lucky? You should be. This is the real deal, the bee's knees, the cat's pajamas. Get it now, or forever hold your peace... and your regrets. Seriously though, you'll love it. Trust me.
more
Specifications:
Brand Name: Happymodel
Model: Moblite7 HDZERO
Frame wheelbase: 75mm

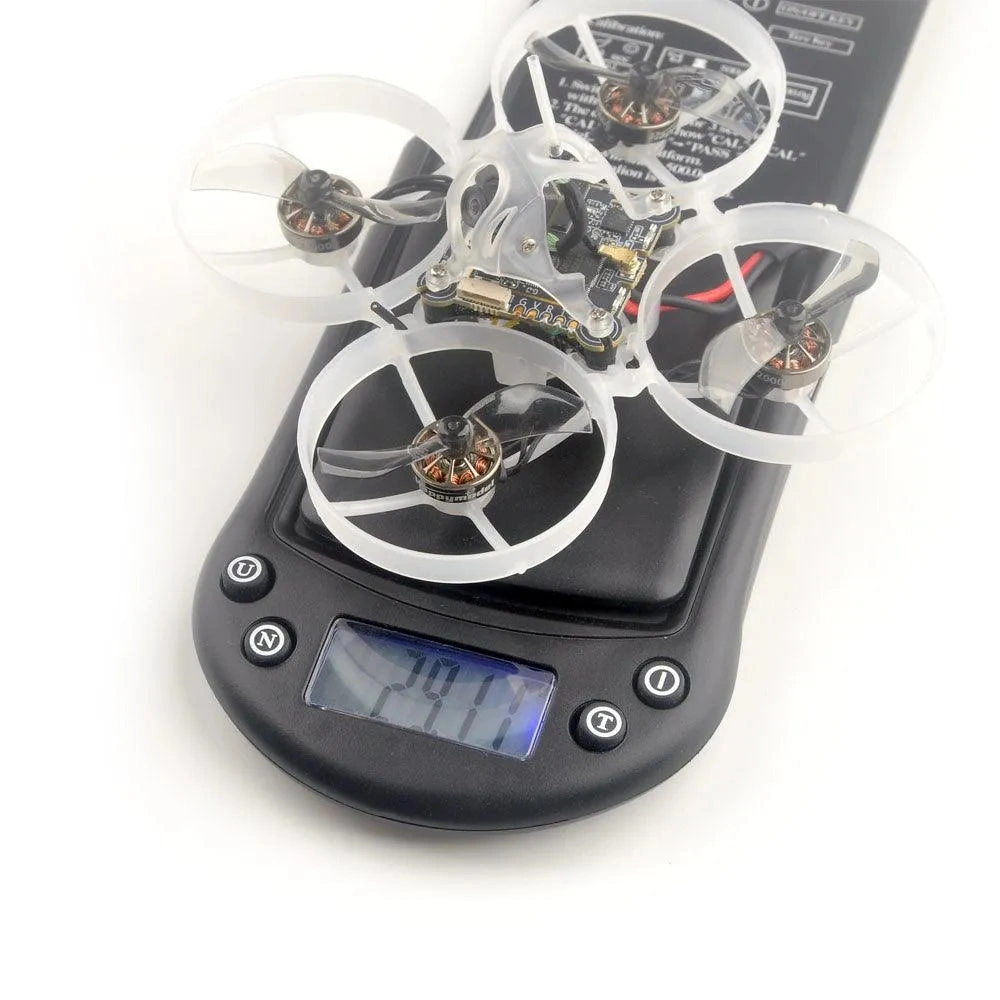

Weight: 29.5 gram without battery
Size: 98mm*98mm*50mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: PH2.0
Flight controller
SuperbeeF4 Lite ELRS/FRSKY
SPI ELRS version Firmware target: CrazybeeF4SX1280
SPI FRSKY version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in SPI Frsky/ExpressLRS receiver
Built-in 5V 1A BEC
Built-in voltage detection
Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT150/DSHOT300/DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Could bind with ELRS V2.0 firmware TX module
Onboard Frsky SPI D8 /D16 2.4GHz Receiver
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol
Motor
Model: EX1002 20000KV
Configu-ration:9N12P
Stator Diameter:10mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
Weight(g):2.5g
No.of Cells(Lipo):1S only
Propeller Gemfan 1610-2 Bi-blades
Weight:0.24g
Material: PC
Pitch:1 inchProps Dia:40mm
Center Hole Dia:1.5mm
HDZero Nano Lite Camera
14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX
1S Input
25mW/200mW RF Output-SmartAudio Support
25.5×25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)
Package Included:
1X Mobula7 v4 75mm frame +Canopy
SPI Receiver Option1: SuperbeeF4 Lite FC built-in ExpressLRS SPI RX
SPI Receiver Option2: SuperbeeF4 Lite FC built-in Frsky SPI RX
4X EX1002 KV20000 Unibell brushless motor
1X Gemfan 1610-2 bi-blades propeller(4cw+4ccw)
1X HDZero Nano Lite Camera
1X HDZero Whoop Lite VTX
1X Spare Canopy
1X Propeller disassemble tool
1X Screw driver
