SuperX HD ELRS AIO: Unleash Your Inner Pilot! Tiny Whoop Powerhouse with Built-in ELRS & ESC!
Alright, listen up partner, are you tired of the same ol' same ol'? This ain't just some *thing*, it's a vibe, a statement, a whole damn experience! It's like a shot of pure sunshine on a rainy day, a roaring bonfire on a chilly night, a classic car cruisin' down Route 66 with the top down. This beauty's got more charisma than a Hollywood heartthrob and more grit than a gold prospector. Don't just buy it, *own it*. This ain't just stuff, this is legend, and you, my friend, are about to become a part of it. So saddle up, partner, and get ready to ride!
more
ETA: Around May 10th.
Notes: Before buying this flight controller, make sure you have good soldering skills and can solder tiny pads. Any flight controller failure caused by welding errors is not covered by the warranty. The motor plugs didn’t pre-solder in our factory.
Specifications:
Flight controllerSuperX HD ELRS
Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver (Default is connected on UART2)
Elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1.5A(Max) BEC
Built-in voltage detectionBuilt-in currents meter
No betaflight analog osd chip
Antenna:enamel copper wire
Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300
Onboard UART ExpressLRS 2.4GHz Receiver
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through

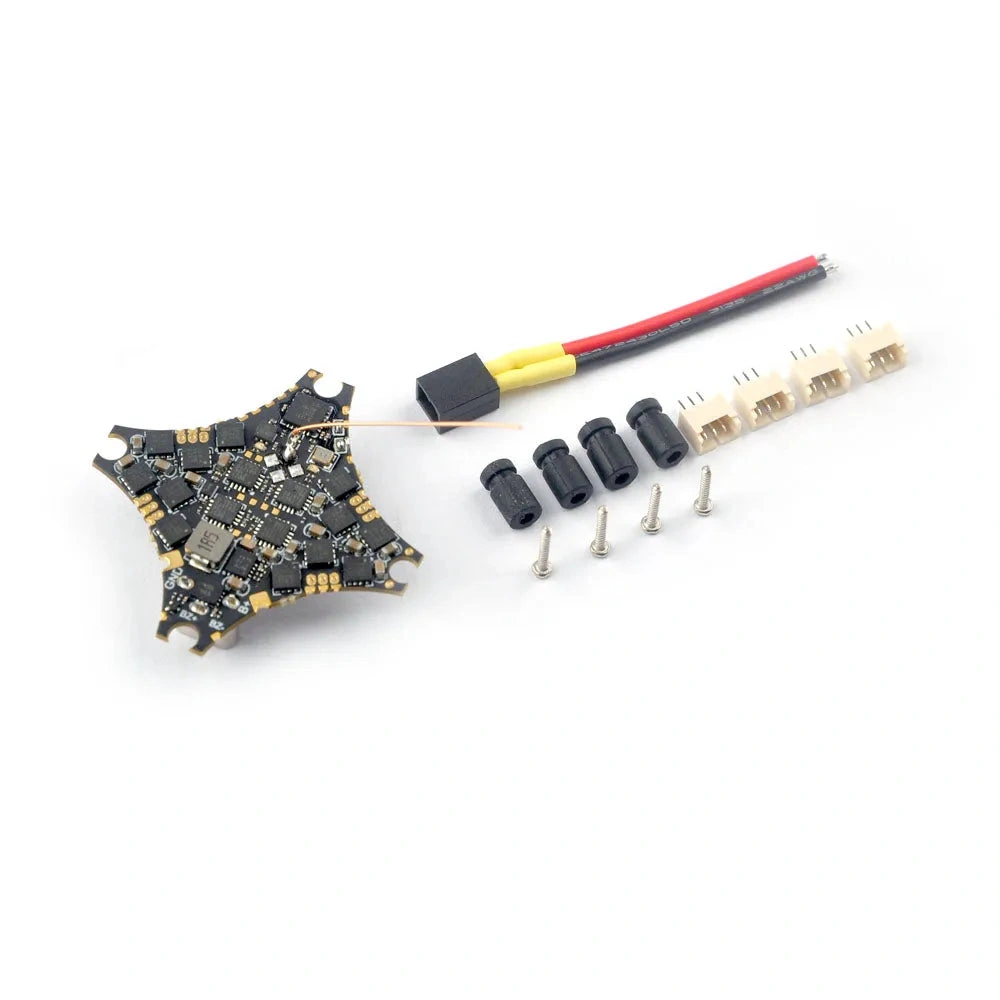

Package Included:
1x Happymodel SuperX HD ELRS Flight controller
