Power Up! IMAX B6AC Charger: Your Battery's Best Friend. Smart, Safe, & Fast Charging!
Alright, picture this - you're scrolling through life, right, and suddenly BAM! You need this. It's not just a thing, it's a vibe. A secret weapon. A conversation starter. This [商品名] is the missing piece of your awesome. Maybe you're looking to level up your game, or maybe you just want to treat yourself. Either way, trust me, you want this. It's got that "I woke up like this" cool factor, that "effortlessly chic" energy. Get ready to turn heads, make friends, and maybe even conquer the world. Don't be a spectator - be the main character. Buy it now. Seriously. Do it. You deserve it.

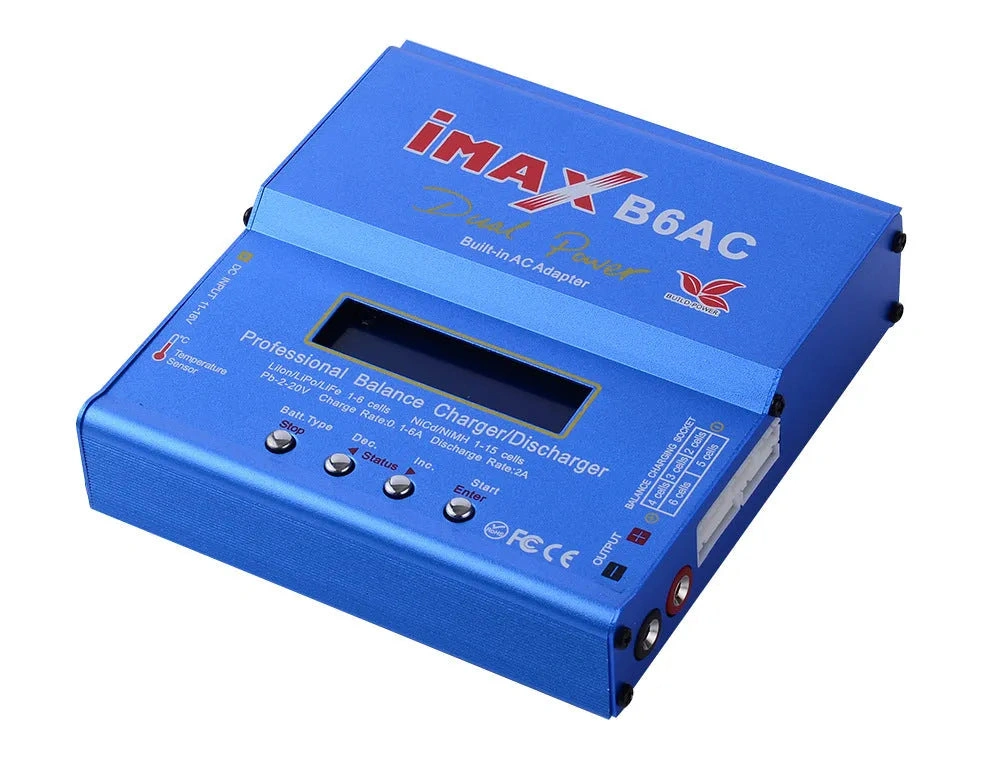

Features Of Imax B6AC
- 100% brand new, high-quality product
- Fast charger with a powerful microprocessor for superior performance
- Optimized software for enhanced operation
- Built-in independent lithium battery balancer
- Balances individual cells during battery discharging
- Compatible with various types of lithium batteries
- Supports both fast charge and storage modes for lithium batteries
- Operating voltage range: DC 10.0-20.0V
- AC to DC adaptor: DC 10.0-20.0V/6A
- Maximum charging power: 80W
- Maximum discharging power: 10W
- Charge current range: 0.1A – 6.0A
- Discharge current range: 0.1A – 2.0A
- Balancing current for Li-Po: 300mAh per cell
- NiCd/NiMH battery cell count: 1-15 cells
- Li-Ion/Polymer battery cell count: 1-6 series
- Pb battery voltage range: 2V – 20V
Specifications Of Imax B6AC
- Size: 136 x 141 x 34mm
- Net weight: approx. 800g
- Package weight: approx. 820g

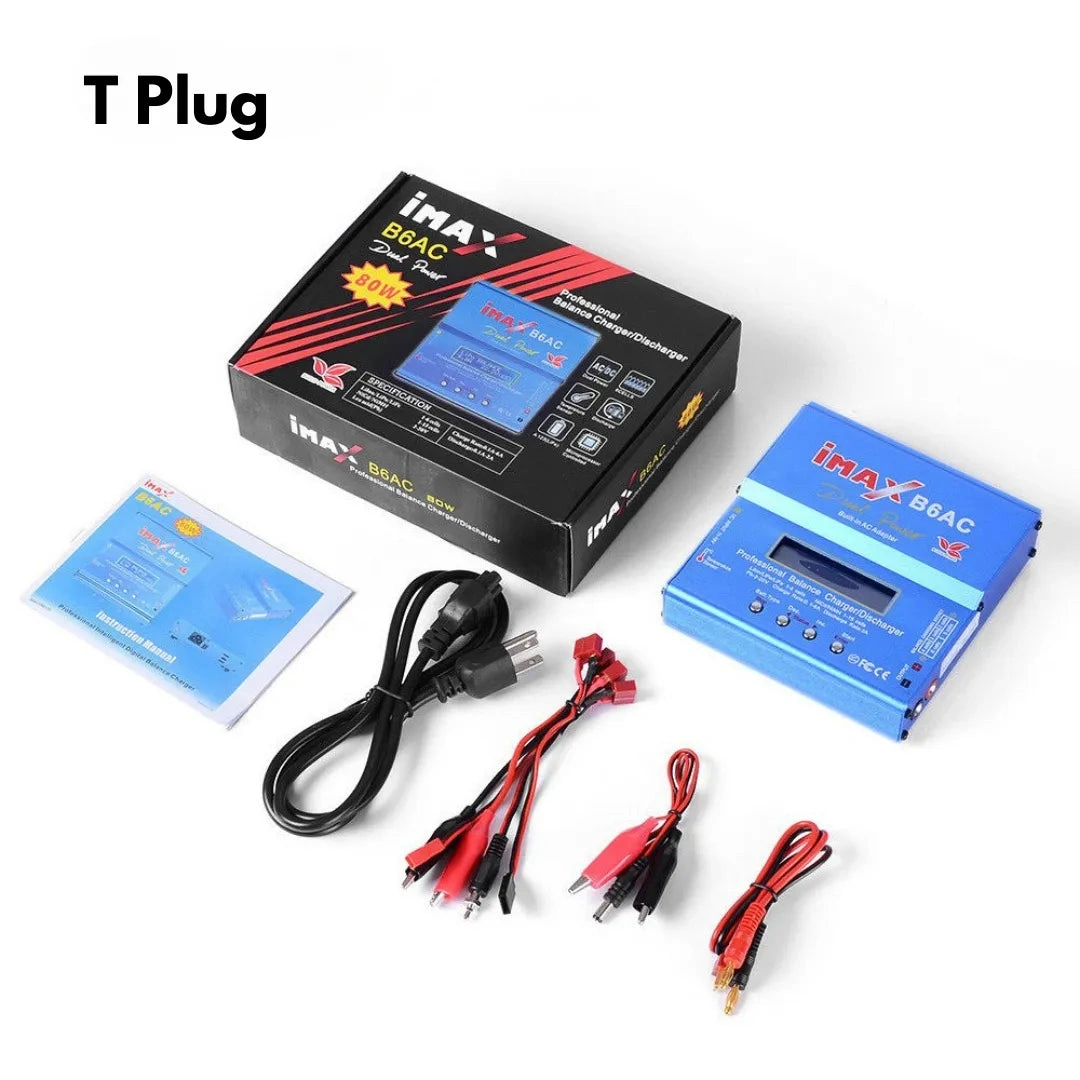

Packing Content:
- 1 x IMAX B6AC battery balance charger (including accessories)

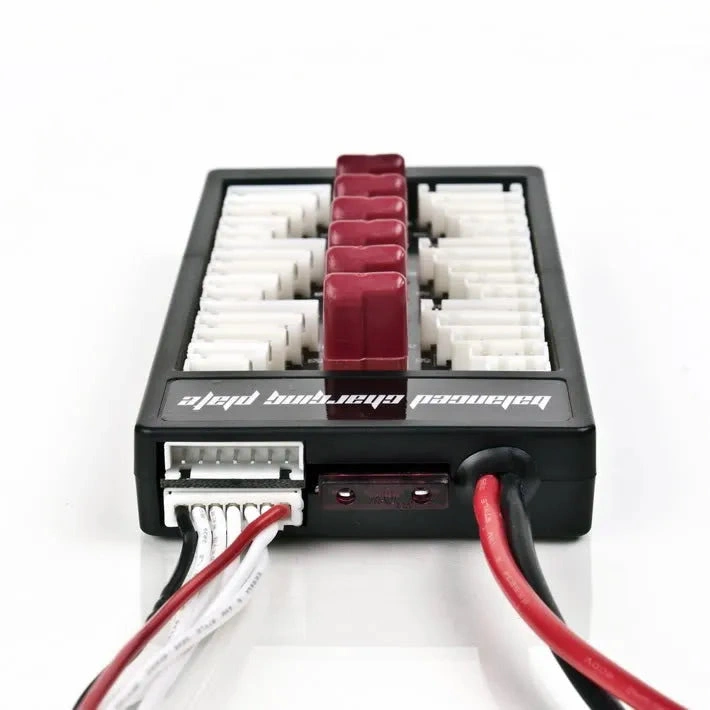

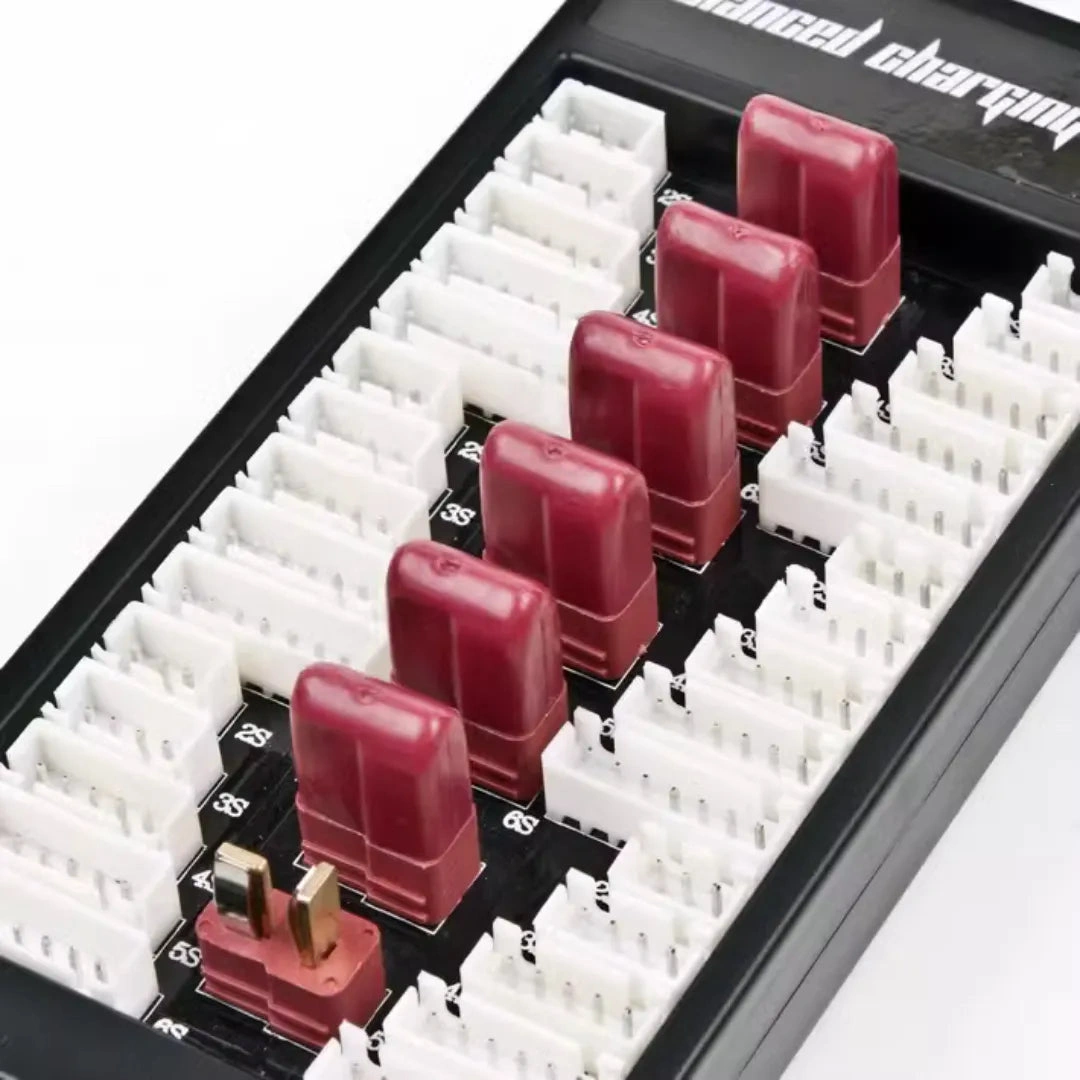

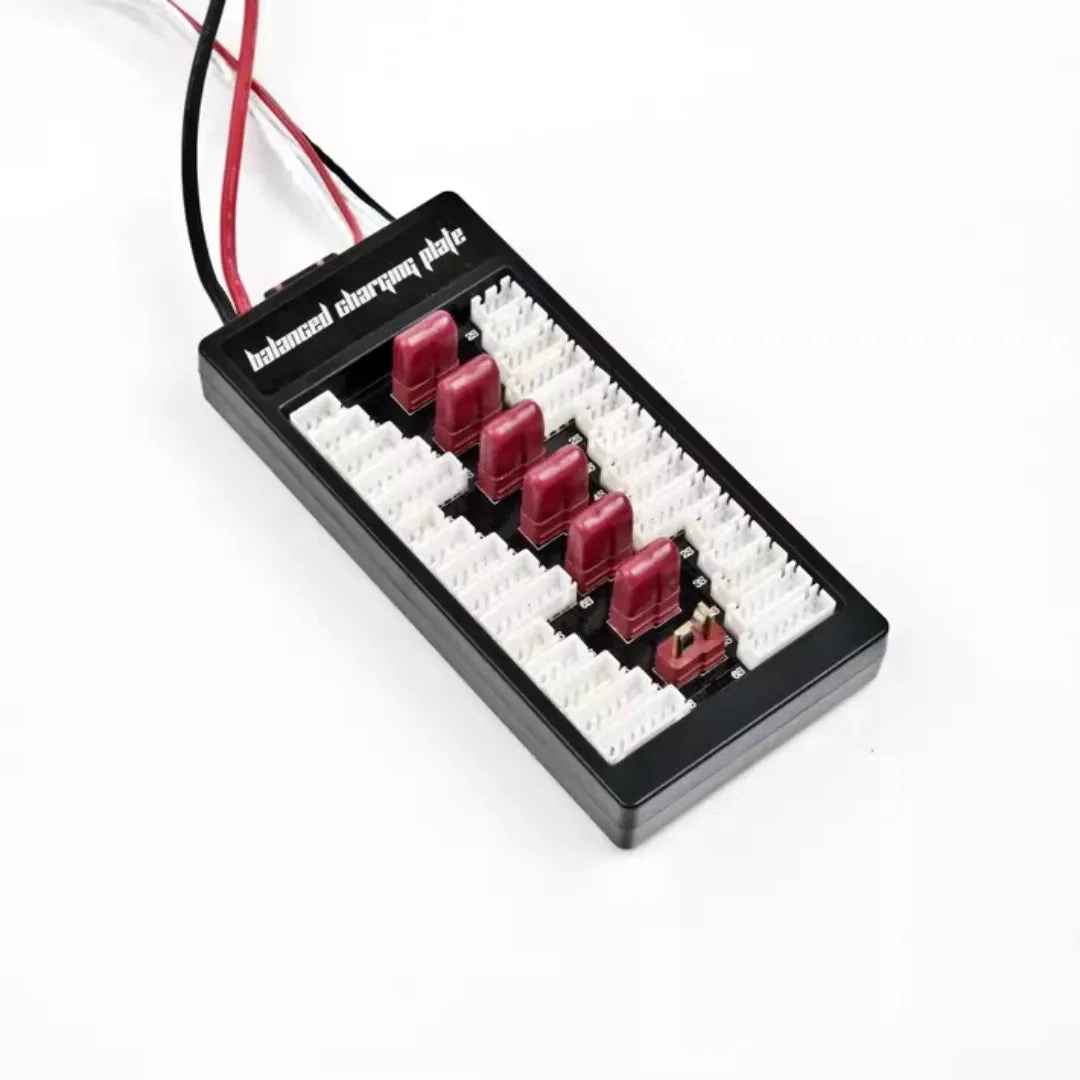

Features of Parallel Charging Board
Parallel balance charging for 6 sets of the same type of battery packs with consistent cell count (2S to 6S). It can simultaneously support 6 sets of 2S, 6 sets of 3S, 6 sets of 4S, 6 sets of 5S, or 6 sets of 6S for parallel balance charging.
Strong Short Circuit Protection (Equipped with a 40A fuse on top, ensuring safer charging).
Powerful Expansion Function (Can parallel charge three charging boards at once, allowing for simultaneous balance charging of 18 battery packs). The functionality is powerful, making it the perfect choice for model enthusiasts!
Detailed Specifications:
- Balance output wires use 20AWG multi-strand silicone wire.
- Main input wires use 14AWG soft silicone wire (400 cores, high-temperature resistance up to 200°C).
- Equipped with safety protection T-plug silicone caps.
- Uses high-quality AMASS output connectors.
- Thickened PCB copper foil (FR-4 1.6mm thick, 20Z copper thickness) can safely handle 40A current!
